LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box

  • 1
  • 2

Model Number : FSP-P-32A

Type : Fiber optic distribution box

Place of Origin : Hangzhou made

Brand Name : Fiberspace

Use : Ftth

Warranty Time : 5 years

Network : ODN

Material : PC+ABS

MOQ : 50 pieces

Price : $9.00 - $10.00/pieces

Contact Now

LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box
Products Description
FSP-P-32A Fiber Distribution Box is is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Product Paramenters
Model
FSP-P-32A
Installation Method
Wall-mounted / Pole-mounted
Color
Gray (Default)
Material
PC+ABS
Capacity Of Splicing
48 Cores
Adapter Ports
32 Pcs (Up to 48 ports)
Adapter Type
SC/ FC / LC etc.
Splitter Type
1:8 / 1:16 / 1:32 Mini PLC

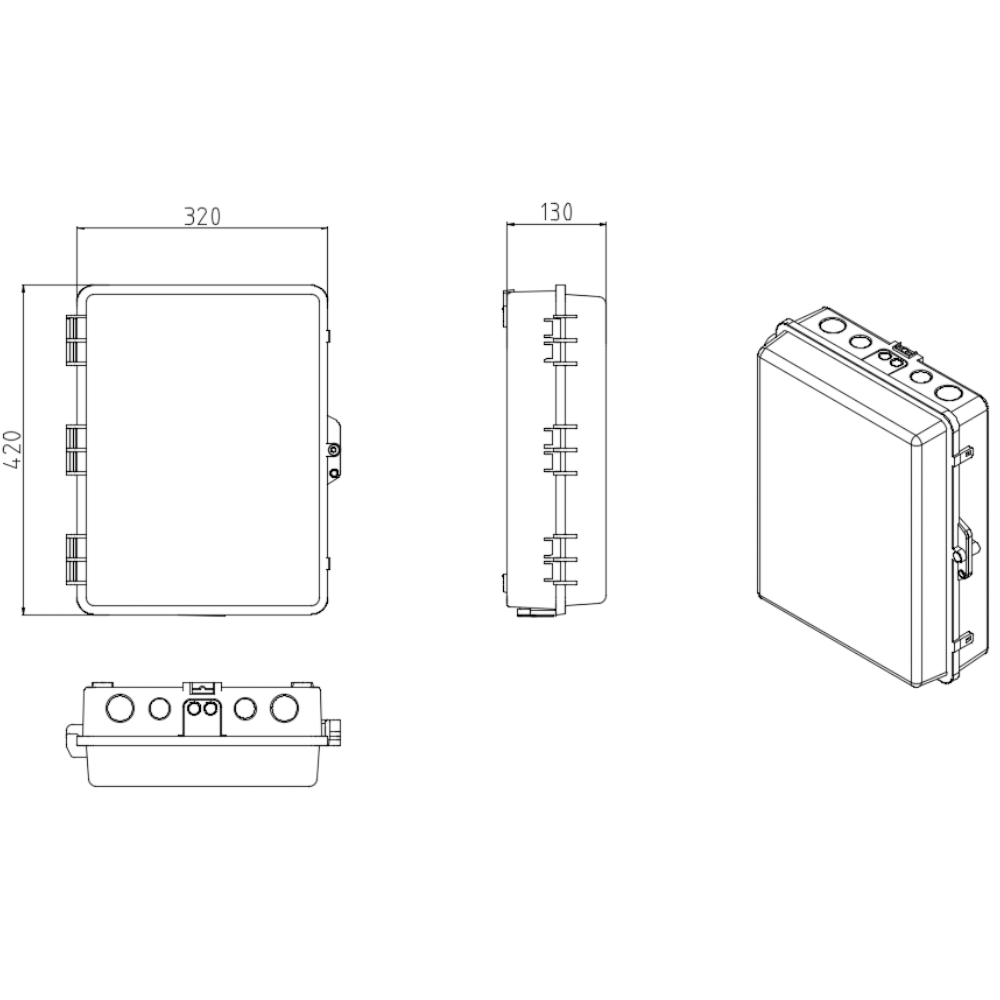

Size: H×W×D (mm) (Pic 1)
420×320×130
IP Grade
IP 55
Working Temperature
-40℃~+85℃
Relative Humidity
≤85% (+30℃)
Atmospheric Pressure
70KPa~106Kpa

If you have special needs of customized products, please contact us.

LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box

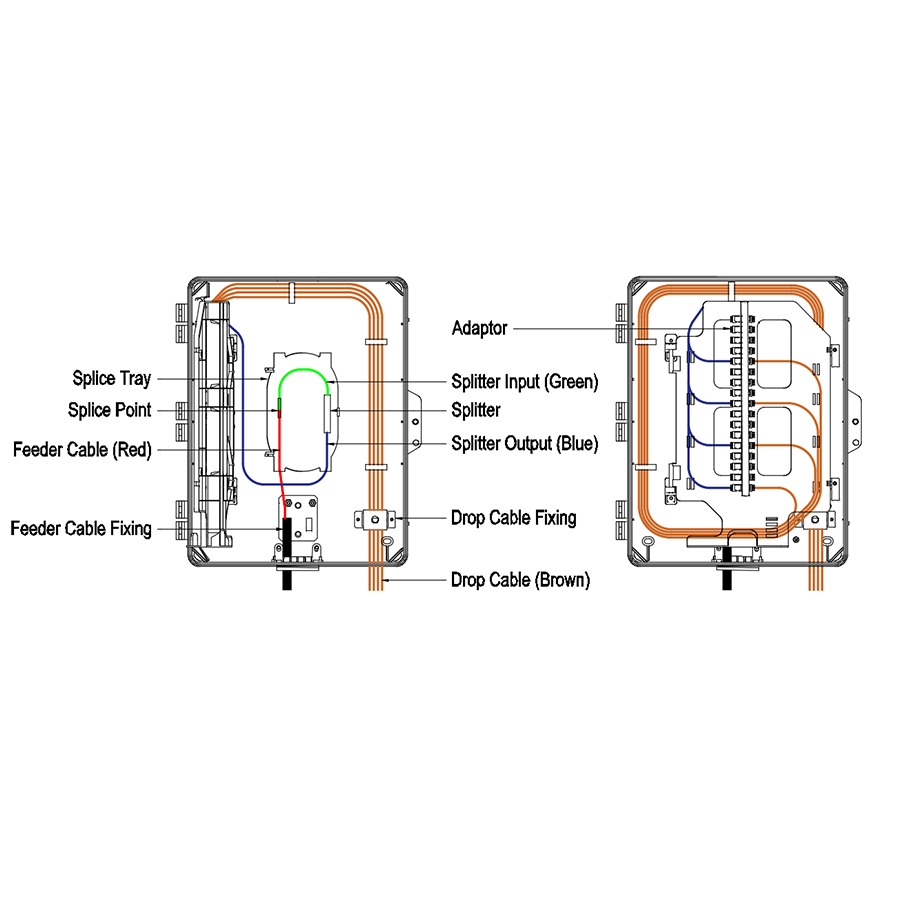

Routing:

LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box
Related Products
LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box
LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box
LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box
LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box
LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box
LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box
LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box
LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box
Certifications
LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box
Company Introduction
LC Connector Fiber Optic FTTH Network 48 Cores Wall-Pole Mounted Fiber Distribution Box
About Yuhua Tech Hangzhou Yuhua Technology Co., Ltd. is a high-tech enterprise founded in 2001, during the rapid development of China's FTTH construction it mainly provides solutions and products for domestic ODN construction, specialized in manufacturing ODN devices, such as Fiber adapters, Pigtails, Patchcords, ODB, ODF, and FDC, etc, especially is the largest manufacturer of FDC in the domestic market. With the development of many years formed an integrated enterprise possessing plastic injection production line, SMC shell production line, sheet metal production line, fiber polishing production line, etc, even covered all the processes of ODN products.Now it has a workshop area of about 27,000 square meters, a technical development team of more than 30 people, and more than 200 workers. Hangzhou Fiberspace Import & Export Co., Ltd is a subsidiary of Yuhua Tech, founded in 2020, possessing an experienced R&D team and Marketing team, Focus on providing cost-effective ODN product solutions for global users and bringing Yuhua's products to the world with the brand "Fiberspace". Welcome to our website: http://www.fiberspace.com.cn

FAQ Q: Are you a manufacturer or trading company? A: We are an Origin factory. Like we mention in the company introduction ,we have two companies ,Yuhua tech & Fiberspace Import &Export,Fiberspace is a subsidiary of Yuhua tech(has been certified by Alibaba),focus on providing cost-effective ODN product solutions for global users and bringing Yuhua's products to the world with the brand "Fiberspace".
Q: Where is your factory located? How can I visit it? A: Our factory is located in No.9 Huan an road, Lishan Town, Fuyang District, Hangzhou City, Zhejiang Province. 40 Minutes by car from Hangzhou Airport.
Q: How can I get the sample? What's the lead time? A: By DHL/UPS/FedEx express. Samples lead time is 7-14 days.
Q: How does your factory control product quality? A: ISO9001 Certificated, independent quality control team with 20 inspectors in our factory. The third-party certificated and factory audit accepted. Third-party quality control accepted.
Q: Do you provide ODM/OEM service? A: OEM/ODM is welcome, From the concept to finished goods, we have our own designer, do all in the factory.
